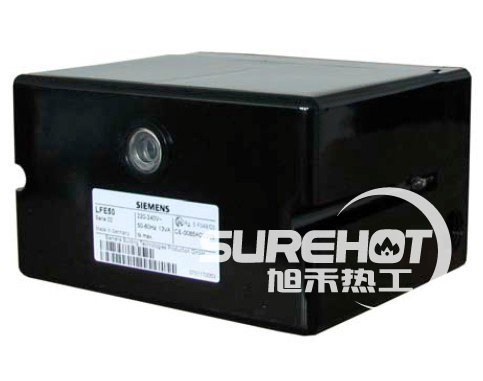

西門子LFE50產品介紹
產品說明 -- 西門子LFE50
The LFE50... together with the QRA50M / QRA51M form a self-checking UV flame supervision system (DETACTOGYR®) designed for use with continuously operating oil or gas burners or burners operating without interruption for more than 24 hours.
- The DETACTOGYR flame supervision system consists of the UV flame safeguard LFE50... and the flame detectors QRA50... / QRA51.... It is designed for UV supervision and can therefore be used in connection with oil burners, gas burners and gas / oil burners. Automatic startup and control of these burners must be ensured with a control unit LEC1... (refer to Data Sheet 7761). The system is also suited for the supervision of manually operated burners.
- Prerequisite for the use of the DETACTOGYR system is sufficiently high UV radiation at the flame detector’s mounting location.
- For combustion plant where heat generation must also be ensured in the event the flame supervision system fails, active redundancy circuitry can be accomplished by using 2 DETACTOGYR systems.
技術參數 -- 西門子LFE50
| 主要參數 |
| 主電壓 |
AC220V -15%...AC240V +10% |
| AC100V -15%...AC1100V +10% |
| 主頻率 |
50...60Hz ±6% |
| 外部保險絲 |
10A |
| 功率 |
13VA |
| 端口額定電流 |
2A |
| 保護等級 |
IP40 |
| 重量 |
1500g |
|
| 環境條件 |
| 運輸環境 |
IEC 60 721-3-2 |
| 內部條件 |
class 2K2 |
| 機械條件 |
class 2M2 |
| 溫度范圍 |
-50...+60ºC |
| 濕度 |
<95% |
| 運行環境 |
IEC 60 721-3-3 |
| 內部條件 |
class 3K5 |
| 機械條件 |
class 3M2 |
| 溫度范圍 |
-20...+60ºC |
| 濕度 |
<95% |
| 不得進水 |
|
參數說明 -- 西門子LFE50
暫無
